Product features:

1. The machine adopts a durable marble body and a stable fixed gantry structure, and is equipped with a high-precision grinding screw and a well-known brand motor. Strictly follow the gauge level standards and adopt excellent main scheme to ensure the stability and reliability of the fuselage structure. This machine has excellent precision and running speed, which is specially tailored for the knife and die industry and has strong pertinence.

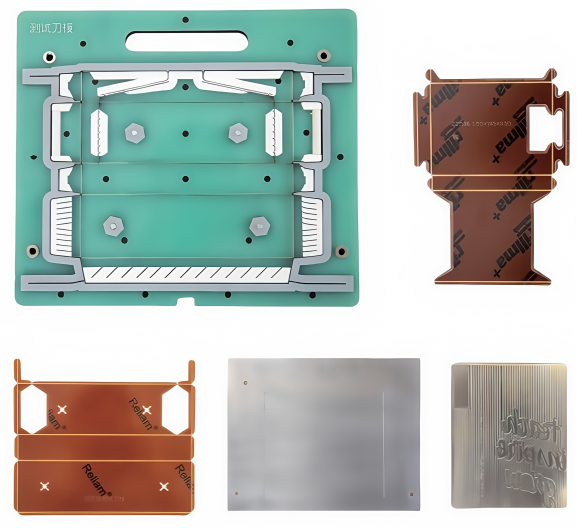

2. This machine adopts aluminum alloy vacuum platform, and the working width reaches 1200*900mm, which is especially suitable for processing thin plate materials and becomes an ideal choice for sandwich knife die, steel bottom die, fiber bottom die and other products. This machine adopts dry processing mode and is equipped with efficient dust collection system, which can effectively prevent dust and keep the environment in the working area clean and tidy. At the same time, local water cooling or blowing cooling can be selected according to needs to meet different processing requirements.

3. This machine adopts a macro system and is equipped with a self-developed G code generation system. Make the operation simple and fast, and you can easily get started without professional skills. In addition, the machine also has an automatic tool changing mode, using ISO handle and in-line tool magazine, equipped with 6 sets of tool positions. The whole process of one-time operation is automatic, and there is no need for manual attendance, which reduces the degree of manual participation and improves production efficiency. At the same time, this machine has its own cutter lock seat, which is convenient and easy to disassemble the cutter.

Brand characteristics:

1.3.7 kW spindle, 24,000 rpm, T-groove locking plate clamping.

2. Double-screw moving beam structure, high precision and small floor space.

3. The idle stroke is 7.5m, and the cutting ability is also first-class.

4. Professionally solve the process of laser cutting black edges and countersunk holes.

5. well done, we should also do hygiene, and remember it at all times.

6. Provide a complete set of technical solutions. Good machines should be easy to use.

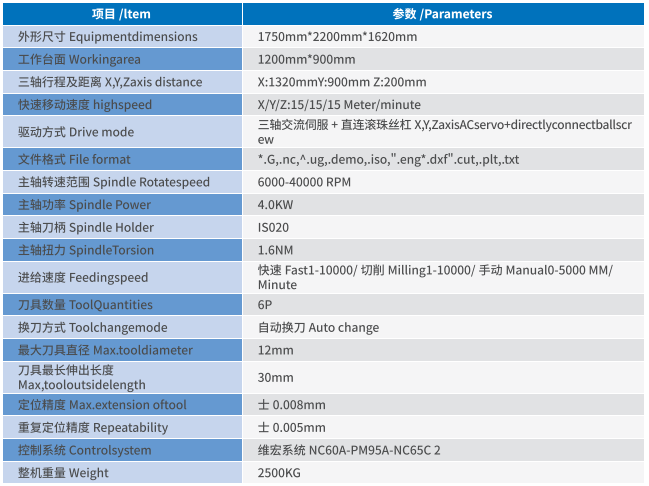

Equipment parameters:
